Wire Wound Resistors

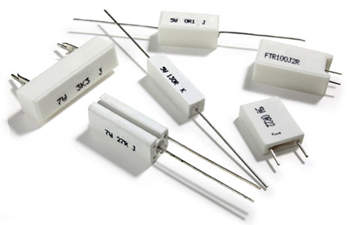

Ceramic Encased Wire Wound Resistor
Specifications
| Wattage Range | 1W – 40W |
| Resistance Range | 0.01Ω – 50KΩ |
| Tolerance | ±1% – ±10% |
| Shape | Axial/Radial |
| Coating | Ceramic Cased |
| Mounting | Through Hole |

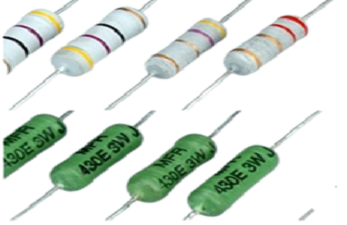

Precision Wire Wound Resistors
Specifications
| Wattage Range | 1W – 25W |
| Resistance Range | 0.01Ω – 30KΩ |
| Tolerance | ±5% – ±10% |
| Shape | Axial |
| Coating | Flame Proof Silicon Coated |
| Mounting | Through Hole |

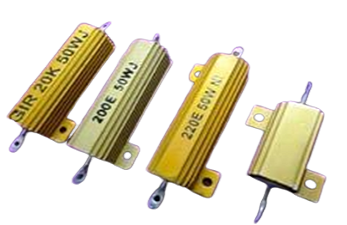

Aluminum Mount chassis Wire Wound Resistor
Specifications
| Wattage Range | 5W – 300W |
| Resistance Range | E01 – 200KΩ |
| Tolerance | ±5% – ±10% |
| Mounting | Panel Mount |
Features
High Power to size ratio
Low surface temperature
Elegant look over whole range
Exceptional stability and reliability against severity of damp heat conditions and other environmental abuses
Low temperature coefficient over entire range
Designed with serrations on Aluminum housing for proper thermal conductivity
Terminations are silver plated
High level voltage protection
Non-standard ohmic values available
Non inductive and special terminations available

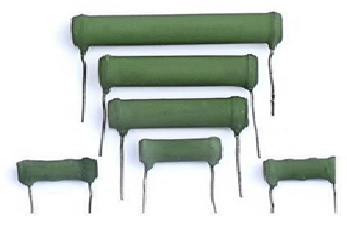

Adjustable Wire Wound Resistors
Specifications
| Wattage Range | 1W – 1000W |
| Resistance Range | E001 – 1000Ω |
| Tolerance | ±1% – ±10% |
| Mounting | Panel Mount |

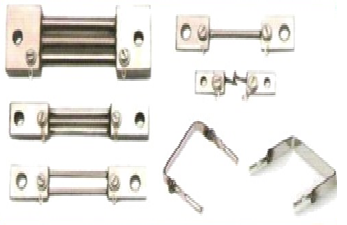

Shunt Resistors
Specifications
| Current Range | 5A – 2500A |
| Resistance Range | 0.001Ω – 0.10Ω |
| Tolerance | Open from PCB Mounting |
| Mounting | Panel Mount/ Through Hole |
